Rolex Submariner – Cal. 3000
Hi there and welcome to my newest post.
I received this beauty a couple weeks ago, and it’s time to start getting to it.

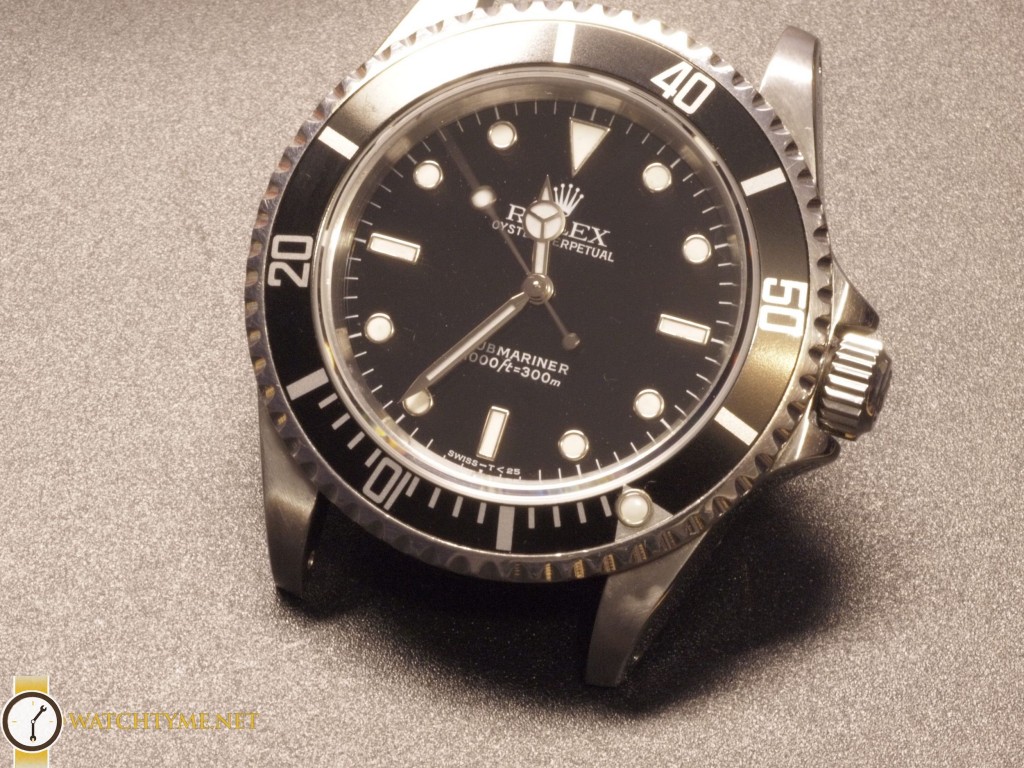

It’s a Rolex Submariner with no date and Cal. 3000 automatic movement. It’s sort of a project watch. I had to install a new crystal retaining ring, crystal and crystal gasket.
So, let’s get started!
[pe2-image src=”https://lh3.googleusercontent.com/-UfQ7uaS5ubI/VwvIsh9acMI/AAAAAAAARkI/0qloYf4OZl89GnGVCaL_D–rrBXEUU44gCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-01.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327573399302338″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-01.JPG” ]
With the case back off, it’s time to start removing the movement out of the case.
[pe2-image src=”https://lh3.googleusercontent.com/-bCYaNPTCV9I/VwvIsUFjNUI/AAAAAAAARkI/IhCiqAbPzG8MHIMFZJHG5SHEMYYV40k8gCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-02.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327569675334978″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-02.JPG” ]
And, here’s the movement out of the case.
[pe2-image src=”https://lh3.googleusercontent.com/-7iglci8v8Ik/VwvIsljNxMI/AAAAAAAARkI/XdBd2ooNjnsc4oQMEK9WrerhmmHcR4SkACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-03.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327574363161794″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-03.JPG” ]
With the hands and dial removed, here’s the dial side of the movement.
[pe2-image src=”https://lh3.googleusercontent.com/-Y1lRUn-GAjY/VwvItA2eYeI/AAAAAAAARkI/gAti1VmfunkXcOgIcCOV76RZgUx-ChqtQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-04.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327581691699682″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-04.JPG” ]
Next, I turn the movement over and start disassembling the the rotor and oscillating weight bridge.
[pe2-image src=”https://lh3.googleusercontent.com/-iBhFTZZykaA/VwvItmOSdPI/AAAAAAAARkI/W1BJdLdowIwC2SehXnSeVE9OHEVzoNGdQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-05.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327591723693298″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-05.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-4qmycbIU5I8/VwvItk94iKI/AAAAAAAARkI/HPxq99CEC8gtlQjemWvPzff7ISXYkeKtACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-06.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327591386450082″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-06.JPG” pe2_img_align=”left” ]
As always, for safety reasons, I remove the balance and pallets.
[pe2-image src=”https://lh3.googleusercontent.com/-Fe5yz40WkeQ/VwvIuP3y_CI/AAAAAAAARkI/lk_ojIEG6DsPc5D4eNIG1iiaKRnF3ptcACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-07.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327602903645218″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-07.JPG” ]
Again, I turn the movement over and start disassembling the keyless and motion works.
[pe2-image src=”https://lh3.googleusercontent.com/-9B1fFxOk6WI/VwvIuTztXgI/AAAAAAAARkI/songQdR8nGAPp3GhHfrefqW1qtb6TqbKgCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-08.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327603960241666″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-08.JPG” ]
Once again, I turn the movement over, and start to remove the gear train bridge.
[pe2-image src=”https://lh3.googleusercontent.com/-3wVrbZnWoPQ/VwvIuvoLIsI/AAAAAAAARkI/bYIOUX_z_uYUg5UAib8Tcpx4z3GGsa0UQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-09.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327611428053698″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-09.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-CX8ljVX-zeI/VwvIu6OIuXI/AAAAAAAARkI/lDaYt36viD8Dp7901K8DcdYhc4QfDHuqwCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-10.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327614271633778″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-10.JPG” pe2_img_align=”left” ]
Seems like I forgot to take some pictures 🙁
But, here’s a few of the questionable work done on luming the hands in the past 🙁
[pe2-image src=”https://lh3.googleusercontent.com/-9C3yNbz1QAg/VwvIvJOXMoI/AAAAAAAARkI/AECb7I2RiOIzcJZspTJkdLKnNtuyyww_QCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-11.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327618299114114″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-11.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-4_gFqc6ci0w/VwvIvSnlJdI/AAAAAAAARhY/NCZjxTgJoukeet8t-b5M2loRTujcln5AwCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-12.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327620820805074″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-12.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-Y-N9kUfo4Kg/VwvIvnhQM6I/AAAAAAAARhY/t8qlW4SOtWgoO2VwuKhvaCAZfMYc_dtZQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-13.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327626431411106″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-13.JPG” pe2_img_align=”left” ]
Here’s a pic of all the parts disassembled.
[pe2-image src=”https://lh3.googleusercontent.com/-f1bM3kRU5H0/VwvIwHztsyI/AAAAAAAARhY/DnxKNLPtYGUljnm7bmBeqBSPZlRApdAdQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-14.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327635098776354″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-14.JPG” ]
Here’s the new crystal retaining ring. The lip where the bezel click spring is suppose to sit was left undone. So, this is something that I will also have to work on.
[pe2-image src=”https://lh3.googleusercontent.com/-B_YWsuwMAKo/VwvIwc8xOaI/AAAAAAAARhY/aUniKrUGAk0wUG1DAQCi5Qat8Mz3gb6ZQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-15.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327640773900706″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-15.JPG” ]
[pe2-image src=”https://lh3.googleusercontent.com/-oIqiOsy3PxQ/VwvIwU8bXhI/AAAAAAAARkI/J7bNTFBjokYJGUYhq1F4m1zDxCNflOCIACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-16.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327638624984594″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-16.JPG” ]
With all the parts cleaned, I organize everything and get started.
[pe2-image src=”https://lh3.googleusercontent.com/-I2qIPfiMg4g/VwvIwy_Y2gI/AAAAAAAARhY/H7QyTHw3eS8jvRTxecz210OQsmr1onk9gCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-17.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327646690466306″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-17.JPG” ]
Using the right tools really makes a huge difference. This is the mainspring tool I will be using to wind the mainspring so I can properly insert it into the barrel.
[pe2-image src=”https://lh3.googleusercontent.com/-6YPAbrw5REo/VwvIxQTnoII/AAAAAAAARhY/V0GNd7A20GIX9XMR_uTzT-EqnXyvw3IEgCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-18.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327654559948930″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-18.JPG” ]
Next, I do the regular chores of treating the reversers, escape wheel and pallets with epilame and finally coat the inner wall of the barrel with breaking grease.
[pe2-image src=”https://lh3.googleusercontent.com/-gaky6R6X2DU/VwvIxjRaPbI/AAAAAAAARhY/rg-Ju1_cQ9goVoKFiBGht_T2lVaCRNhsACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-19.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327659650956722″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-19.JPG” ]
That looks much cleaner 🙂
[pe2-image src=”https://lh3.googleusercontent.com/-PPJ5TpsNozA/VwvIxm6tyXI/AAAAAAAARhY/JLyACIvHqwQXHjcW5hwWQKgN1X__l49_wCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-20.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327660629510514″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-20.JPG” ]
Alright, time to start installing everything.
[pe2-image src=”https://lh3.googleusercontent.com/-eS7xtWn6w4c/VwvIyHCZXkI/AAAAAAAARhY/KQ8nKJx4sJElpdpDJe9omQIKrNlaoSPwQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-21.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327669251661378″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-21.JPG” ]
Followed by installing the respective bridges.
[pe2-image src=”https://lh3.googleusercontent.com/-4CwaBJUtwgA/VwvIysiKtXI/AAAAAAAARhY/3d8_zxOGNjApYPU4OMbk9vJXDpEhzWM6gCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-22.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327679317030258″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-22.JPG” ]
Then, I install the ratchet wheel and click and click spring.
[pe2-image src=”https://lh3.googleusercontent.com/-0tqo28-st9U/VwvIysC3atI/AAAAAAAARhY/-1x_EUUlgbIMvVm2_7XKLzpZRDAMphtDQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-23.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327679185742546″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-23.JPG” ]
I turn the movement over and get started on the motion works. But, the setting lever jumper is a wee bit rusted. I’ll try and remove most of that with a fiber brush.
[pe2-image src=”https://lh3.googleusercontent.com/-dbD5aOUX2Tc/VwvIzPoi4SI/AAAAAAAARhY/rHpWoyUUiTAcCs1MjVlxa8F8i1U57KZLwCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-24.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327688739021090″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-24.JPG” ]
Next, I install the balance and regulate the movement.
[pe2-image src=”https://lh3.googleusercontent.com/-Xn_LgFDprPk/VwvIzQ3A60I/AAAAAAAARhY/H2S099b8txYYijL_5yTblzfGXbPkfDYxACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-25.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327689068145474″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-25.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-DJf4JSklDF0/VwvIzn2bIFI/AAAAAAAARhY/iyYTQZQTi9sfjN9X6zQBWlW7-L02XvRigCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-26.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327695239684178″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-26.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-L8Kkke7EfGU/VwvI0EWyT4I/AAAAAAAARhY/WiBIOclObpIDU-EqI6EDlVg_dfLYt93VQCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-27.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327702891614082″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-27.JPG” pe2_img_align=”left” ]
After being satisfied with regulating the movement, it’s time to install the automatic bridge and all it’s components.
[pe2-image src=”https://lh3.googleusercontent.com/-spOoZKn6wrQ/VwvI0BJ4P4I/AAAAAAAARhY/OpJv14VnbichebqKkpL20rA5jXeO7Co2ACHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-28.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327702032170882″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-28.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-7XYWEKcXh0E/VwvI0aGyMmI/AAAAAAAARhY/mh_EJ_dm1jAge_ioc3JFhyEkVYjYWOpRwCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-29.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327708730077794″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-29.JPG” pe2_img_align=”left” ]
Finally, it’s time to case the movement and put it all together.
[pe2-image src=”https://lh3.googleusercontent.com/-4FU0en-Se7A/VwvI0wUXZHI/AAAAAAAARhY/CkXRHXlPMm0i8_ANR5g8SBEWR-HvmEPYwCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-30.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327714692621426″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-30.JPG” pe2_img_align=”left” ]
[pe2-image src=”https://lh3.googleusercontent.com/-srNZLL1E-1Y/VwvI1EBn8oI/AAAAAAAARhY/qRp5uNxkBtcilb9W-fuS1IEqVsxPa7UagCHM/s144-o/Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-31.JPG” href=”https://picasaweb.google.com/100026384290156470746/RolexSubmarinerCal3000#6272327719982723714″ caption=”” type=”image” alt=”Watchtyme-Rolex-Submariner-Cal3000_11_04_2016-31.JPG” pe2_img_align=”left” ]
Well, that’s it. I hope you enjoyed my latest repair.
Cheers
Chris Marcellin
